UV LED Light Sources

Applications

Sheet-Fed Offset Printing

Sheet-fed offset printer with chain delivery system that requires long working distance for curing and pinning.

Inkjet Printing

Pinning and curing for UV inkjet single-pass and multi-scan printing.

Other Analog Printing

Curing for offset rotary printers, flexographic printers, and screen printers.

Coatings

Curing various coating materials such as for optical fiber, wood, and mobiles phones cases.

Adhesives

Curing UV curable adhesives such as for LCD, touch screens, and substrate manufacturing.

Exposure Devices

Photo processing for semiconductor manufacturing equipment, pattern forming for LCD panels, and circuit forming for PCB.

Features

Characteristics of Kyocera UV LED Light Sources

High-density mounting and high heat dissipation accomplished by Kyocera’s ceramic substrates

High-density mounting of LED chips produces high-output irradiation. Kyocera's low-thermal resistance ceramic substrate improves heat dissipation and allows high density mounting of LED chips.

Product design optimized by simulation

Kyocera's UV LED Light Sources are developed by using optical simulation to optimize irradiance, focus distance, and surface uniformity as well as fluid simulation to optimize the characteristics of heat dissipation and the positioning of components.

Customized Products

In addition to our standard products, we offer custom products. Please contact your local Kyocera representative for more information.

Products

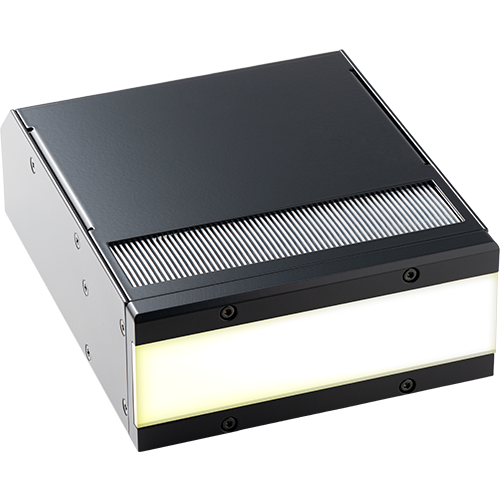

G7A Air-Cooled UV LED Light SourceRevolutionary curing performance and compact size

G7A

Achieves a peak irradiance of 20 W/cm² and a dose of 400 mJ/cm²

Peak irradiance of 20W/cm² (at UV wavelength 385nm/395nm and working distance of 0mm) with air-cooling is achieved by using a high heat dissipation ceramic substrate and optimizing the design of the heat sink to maximize energy efficiency. Capable of achieving 400mJ/cm² (at 50m/min) dose, which is comparable to the dose level provided by a water-cooled UV LED light source.

Compact size contributes to space saving(Compared to G5H: a 62% smaller footprint and a 10% lower height)

Compact size (120 × 52 × 151mm) has been achieved by reducing the footprint by 62% and the height by 10% compared to the G5H series. The irradiance window size is secured at 30mm, contributing to space saving while maintaining revolutionary curing performance.

Scalable structure for flexible customization of the irradiation width

The G7A UV LED Light Source has a scalable structure in 120mm increments, allowing the irradiation width to be adjusted from a minimum of 120mm to a maximum of 2,400mm. This enables flexible customization to meet a wide variety of printed materials. Serial communication with external devices is available. ON/OFF power switching at about 30mm units allows optimization and flexibility in selecting the irradiation width and area according to the target to be printed.

Monitoring functions for stable operation

The G7A Series features monitoring functions via serial communication, allowing for LED temperature, LED current, fan operation time, and accumulated LED lighting hours. Can detect lighting and system errors and provides notifications for filter replacement and LED lifespan, ensuring stable system operation.

G7A Spec

Model	Cooling method	Dimensions W × D × H (mm)	Weight (kg)	Irradiation window size (mm)	Wavelength (nm)	Dose(mJ/cm²) at 50m/min WD = 10mm	Peak irradiance (W/cm²)
							WD=0mm	WD=10mm
G7A	Air-cooling	120 × 52 × 151	1.0	120 × 30	365	300	13	9
					385 395	400	20	12

WD: Working Distance

G5A Air-cooled UV LED Light SourceCompact and lightweight design with high-irradiance

Three connected units of G5A

High-irradiance and dose

Peak irradiance of 24W/cm² (at UV wavelength 385nm/395nm) with air-cooling is achieved by use of high heat dissipation ceramic substrate and optimizing the design of the heat sink to maximize energy efficiency. Capable of achieving 270mJ/cm² (at 50m/min) dose, which is comparable to the dose level provided by water-cooled UV LED light source.

Compact and lightweight design allows more flexibility for mounting

Compact (80.3 × 88.0 × 150.5mm) and lightweight (1.0kg) design allow more flexibility when incorporating this UV LED Light Source into a system. The G5A Light Source's ability to achieve high-irradiance with air-cooled design eliminates the need for a water-cooling system (chiller) which is required for water-cooled high-irradiance light sources.

Scalable structure

The G5A UV LED Light Source is scalable in 80mm increments to a maximum irradiation width of 1,600mm to meet various curing job requirements. Serial communication with external devices along with ON/OFF power switching at 26.5mm units is available, allowing optimization of the irradiation area.

Monitoring functions for stable operation

Monitoring functions: LED temperature, LED current, fan operating hours, and accumulated LED lighting hours. Alert functions: System error, LED lighting error, air filter replacement, etc.

G5A Spec

Model	Cooling method	Dimensions W × D × H (mm)	Weight (kg)	Irradiation window size (mm)	Wavelength (nm)	Dose(mJ/cm²) at 50m/min WD = 10mm	Peak irradiance (W/cm²)
							WD=0mm	WD=10mm
G5A	Air-cooling	80.3 × 88.0 × 150.5	1.0	80 × 20	365	200	16	6
					385 395	270	24	8

WD: Working Distance

G5H Air-cooled UV LED Light Source
Offers highest dose in class*

*According to the survey of other available product in the market by Kyocera.

G5H

Achieving High-Dose: 400mJ/cm² (1.5 times of G5A Model)

At 50m/min transportation speed with UV wavelength 385nm/395nm

Increased Dose to 400mJ/cm2 which is one of the critical features of the curing capability by optimizing the LED chip arrangement and heat sink design.
Dose is 1.5 times higher than G5A model.

Scalable structure

The G5H UV LED Light Source is scalable in 80mm increments to a maximum irradiation width of 1,600mm to meet various curing job requirements. Serial communication with external devices along with ON/OFF power switching at 26.5mm units is available, allowing optimization of the irradiation area.

Monitoring functions for stable operation

Monitoring functions: LED temperature, LED current, fan operating hours, and accumulated LED lighting hours.
Alert functions: System error, LED lighting error, air filter replacement, etc.

G5H Spec

Model	Cooling method	Dimensions W × D × H (mm)	Weight (kg)	Irradiation window size (mm)	Wavelength (nm)	Dose(mJ/cm²) at 50m/min WD = 10mm	Peak irradiance (W/cm²)
							WD=0mm	WD=10mm
G5H	Air-cooling	80.3 × 140.0 × 170.5	1.5	80 × 31	365	300	16	9
					385 395	400	24	12

G5AP Air-cooled UV LED Light Source
Offers high irradiance with slim design

G5AP

19mm - Super thin design (excluding the 35mm thickness at fan area)

Compact and super thin design (1/4 of G5A model) allow more flexibility when incorporating this UV LED Light Source into a system.

Print quality improvement by pinning process

Curing inkjet inks by each colors (pinning) will prevent unwanted ink spread and color mixture, improving the print quality.

[ Without Pinning ] Example of unwanted ink spreading
and color mixture (lower print quality)

[ With Pinning ] Example of pinned color inks
(higher print quality)

Illustration of printed image without pinning process and with pinning process using G5AP.

Scalable structure

The G5AP UV LED Light Source is scalable in 120mm increments to a maximum irradiation width of 2,400mm to meet various curing job requirements. Serial communication with external devices along with ON/OFF power switching at 40.0mm units is available, allowing optimization of the irradiation area.

Monitoring functions for stable operation

Monitoring functions: LED temperature, LED current, fan operating hours, and accumulated LED lighting hours.
Alert functions: System error, LED lighting error, air filter replacement, etc.

G5AP Spec

Model	Cooling method	Dimensions W × D × H (mm)	Weight (kg)	Irradiation window size (mm)	Wavelength (nm)	Dose(mJ/cm²) at 50m/min WD = 10mm	Peak irradiance (W/cm²)
							WD=0mm	WD=10mm
G5AP	Air-cooling	120.0 × 19.0 × 219.0 (D=35.0 at fan area)	0.5	120 × 13	365	25	4	1
					385 395	35	6	1.5

G5AN/G5HN Air-cooled UV LED Light Source(Nitrogen Purging Model)
Dramatically increases the acceptance of wider range of inks.

G5AN

G5HN

Have you ever experienced "We considered the introduction of a UV LED light source, but abandoned the idea because of insufficient curing with existing inks"? It may be due to "oxygen inhibition" caused by the combination of radicals generated by UV irradiation with atmospheric oxygen.
Kyocera has developed a UV LED Light Source that realizes excellent curing performance without relying only on power such as irradiance and integrated (or accumulated) light amount, in particular, against "oxygen inhibition" known as poor curing of the ink surface.

Compatible with wide range of inks

Excellent curing performance even for inks and resins that are difficult to cure with conventional UV LED light source, such as low migration inks, coat varnishes, and inks for metal halide lamps.

Integrated structure with Kyocera UV LED Light Source (G5AN/G5HN)

Unlike the conventional nitrogen purging system that requires an enclosed space, G5AN/G5HN can efficiently flow nitrogen and reduce oxygen concentration in UV irradiation area simply by installing it in the system. No major modification to the system is required to create an enclosed space. A separate nitrogen supply source such as a nitrogen generator is required.

Scalable structure

The irradiation width can be extended to match the print size (80mm to 1,600mm) by 80mm width scalable unit structure.

Video Clip

G5AN Spec

Model	Cooling method	Dimensions W × D × H (mm)	Weight (kg)	Recommended nitrogen purity	Nitrogen flow rate (L/min)
G5AN	Air-cooling	80.3 × 109.7 × 161.2	1.3	Higher than 99.9%	10～30 * May vary by the used UV ink and printing conditions

*Irradiation window size, UV Wavelength, Dose, and Peak irradiance are same as G5A model.

G5HN Spec

Model	Cooling method	Dimensions W × D × H (mm)	Weight (kg)	Recommended nitrogen purity	Nitrogen flow rate (L/min)
G5HN	Air-cooling	80.3 × 161.7 × 181.7	1.8	Higher than 99.9%	10～30 * May vary by the used UV ink and printing conditions
